3/4/5 Axis Vertical Machining Center Selection Guide for Batch Manufacturing Scenarios
15 07,2026
Ningbo Kaibo CNC Machinery Co., Ltd.
Industry Guide
This guide compares 3-axis, 4-axis, and 5-axis vertical machining centers (VMC) focusing on capability differences, processing efficiency, suitable workpiece types, and investment factors. Ningbo Kaibo CNC provides professional selection frameworks based on its VMC and custom machine tool expertise.
Selecting the right vertical machining center (VMC) is critical for optimizing production efficiency, ensuring machining accuracy, and maximizing return on investment in batch manufacturing operations. As a leading manufacturer with over 25 years of expertise in CNC machinery, Ningbo Kaibo CNC Machinery Co., Ltd. has developed this guide to help manufacturers navigate the technical differences between 3-axis, 4-axis, and 5-axis vertical machining centers.

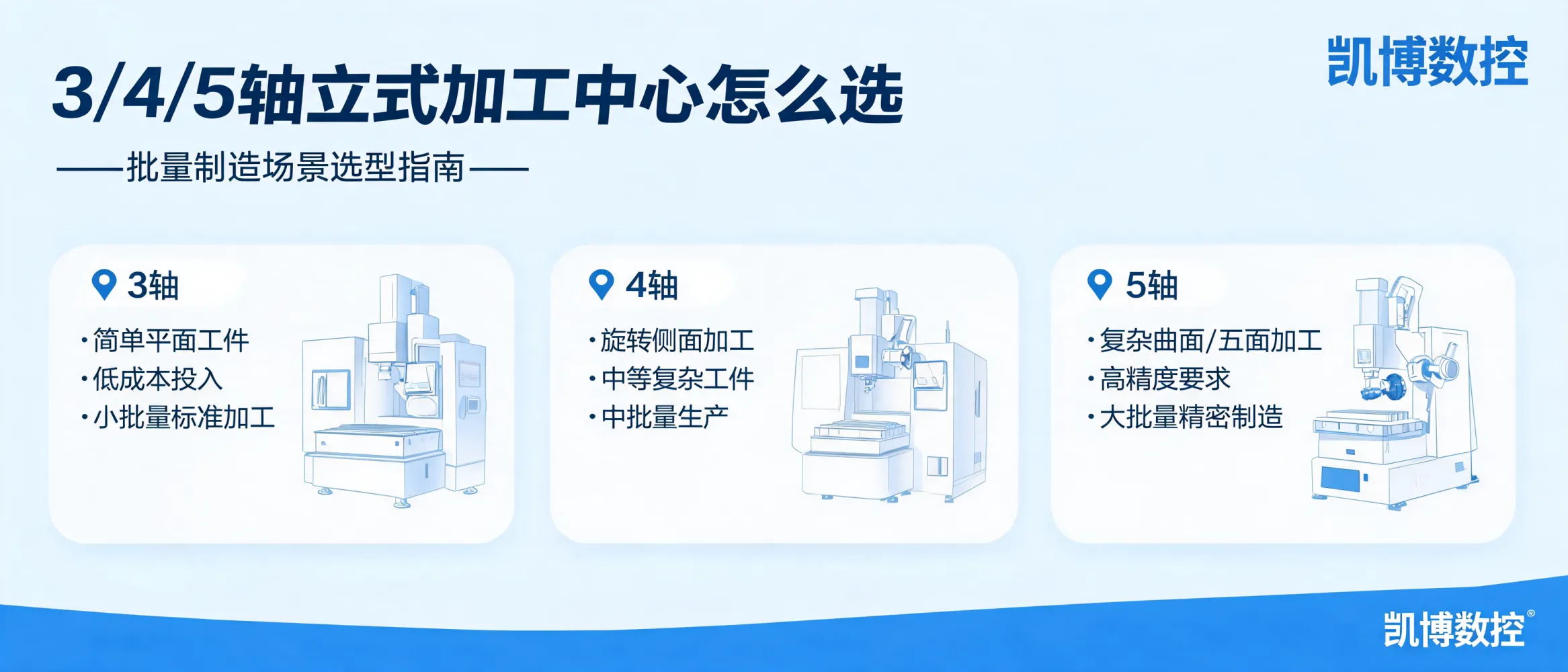

Understanding Axis Configurations
3-Axis Vertical Machining Centers
Standard 3-axis VMCs provide movement along X, Y, and Z axes, offering precise vertical machining capabilities for simple to moderately complex parts. These machines excel in flat surface machining, drilling, and milling operations where workpiece repositioning is minimal.
- Fixed workpiece positioning
- Suitable for 2.5D and simple 3D components
- Lower initial investment cost
- Faster setup for straightforward parts
4-Axis Vertical Machining Centers
4-axis VMCs add a rotary A-axis to the standard 3-axis configuration, enabling workpiece rotation around the X-axis. This capability allows for machining multiple sides of a part in a single setup, significantly reducing handling time and improving accuracy.
- Includes rotary table (A-axis)
- Reduces multiple setups for complex parts
- Ideal for cylindrical and asymmetrical components
- Balances complexity and investment
5-Axis Vertical Machining Centers
5-axis VMCs incorporate both A and B rotary axes, providing full workpiece articulation. This advanced configuration enables simultaneous multi-plane machining, allowing complex geometries to be produced with exceptional precision and minimal setup.
- Dual rotary axes (A and B)
- Complete workpiece accessibility
- Eliminates multiple setups for complex parts
- Optimizes tool approach angles
Key Selection Factors for Batch Manufacturing
| Selection Criteria |
3-Axis VMC |
4-Axis VMC |
5-Axis VMC |
| Part Complexity |
Simple to moderate 3D features |
Moderate to complex with multiple faces |
Highly complex, curved, or multi-angle geometries |
| Batch Size Efficiency |
Best for high-volume simple parts |
Excellent for medium-to-high volume complex parts |
Optimal for low-to-medium volume complex parts |
| Setup Time |
Low (single setup per orientation) |
Medium (reduced setups vs. 3-axis) |
High initial setup, minimal repositioning |
| Skill Requirement |
Standard CNC programming knowledge |
Advanced programming skills |
Specialized 5-axis programming expertise |
| Investment Level |
Entry-level to moderate |
Moderate to high |
High |
Application Scenarios & Best Fit
3-Axis VMC Ideal Applications
3-axis vertical machining centers are perfectly suited for:
- Flat parts with 2.5D features
- Simple holes, slots, and pockets
- High-volume production of standardized components
- Drilling, tapping, and face milling operations
- Prototyping simple parts
4-Axis VMC Ideal Applications
4-axis vertical machining centers excel in:
- Components requiring machining on multiple sides
- Cylindrical parts and rotational features
- Medical and automotive parts with complex profiles
- Production where setup time reduction is critical
- Medium-complexity aerospace components
5-Axis VMC Ideal Applications
5-axis vertical machining centers are recommended for:
- Highly complex geometries and free-form surfaces
- Multi-angle features requiring simultaneous machining
- Precision aerospace and defense components
- Medical implants and orthopedic devices
- Prototyping complex parts with minimal setup
Kaibo CNC VMC Solutions
With over 25 years of experience as a national standard setter for CNC engraving and milling machines, Ningbo Kaibo CNC offers a comprehensive range of vertical machining centers designed to meet diverse manufacturing requirements:
3-Axis VMC Series
Our 3-axis vertical machining centers deliver exceptional precision for high-volume production. Key features include:
- High rigidity frame construction
- Precision ball screws and linear guides
- Advanced CNC control systems
- Customizable worktable sizes
4-Axis VMC Series
Kaibo's 4-axis solutions combine versatility with efficiency. Highlights include:
- High-precision rotary tables
- Enhanced spindle performance
- Optimized chip management
- User-friendly programming interface
5-Axis VMC Series
Our advanced 5-axis vertical machining centers offer uncompromising precision. Key advantages:
- Dual-axis rotary table
- High-speed machining capabilities
- Advanced CAM software integration
- Thermal stability design
"At Ningbo Kaibo CNC, we believe the right machining solution should align with your specific production requirements, part complexity, and long-term business goals. Our technical team provides personalized consultation to help manufacturers select the optimal vertical machining center configuration for their unique applications."
Next Steps for Your Machining Center Selection
To determine the ideal vertical machining center for your batch manufacturing operations, consider the following approach:
- Analyze your part complexity - Evaluate geometric requirements and feature accessibility
- Assess production volume - Determine batch sizes and production cycles
- Evaluate setup requirements - Calculate potential time savings from reduced setups
- Consider skill availability - Assess your team's programming capabilities
- Plan for future needs - Anticipate product evolution and manufacturing requirements
As a trusted manufacturer with 26 sales and service offices worldwide, Ningbo Kaibo CNC provides comprehensive support throughout your selection process and beyond, ensuring optimal performance and return on investment for your machining operations.
