In the precision-driven world of iron mold manufacturing, vibration-induced inaccuracies and tool chatter are not just nuisances—they’re costly bottlenecks. Many shops still rely on traditional vertical or gantry-style machines that struggle under heavy cutting loads. But what if you could cut through these issues with a design that’s built for rigidity, stability, and consistent surface finish?
According to a 2023 survey by the International Association of Machinists (IAM), over 67% of mold makers reported increased scrap rates due to dynamic instability when machining large cast iron components. In many cases, this stems from poor structural integrity in the machine frame—especially in vertical mills where the moving column transfers vibrations directly into the workpiece.
| Machine Type | Max Vibration (μm) | Surface Finish (Ra, μm) | Avg. Cycle Time per Part (min) |
|---|---|---|---|
| Standard Vertical Mill | 15–25 | 3.2–5.0 | 45–60 |
| Gantry Machine | 10–18 | 2.5–3.5 | 35–50 |
| DC1113 Bridge-Column Model | ≤6 | 1.5–2.0 | 25–35 |
“We tested three different setups on a complex die insert with deep cavities. Only the bridge-column design maintained sub-2μm surface roughness across 8 hours of continuous operation.” — Dr. Lin Wei, Lead Engineer at TechMold Solutions

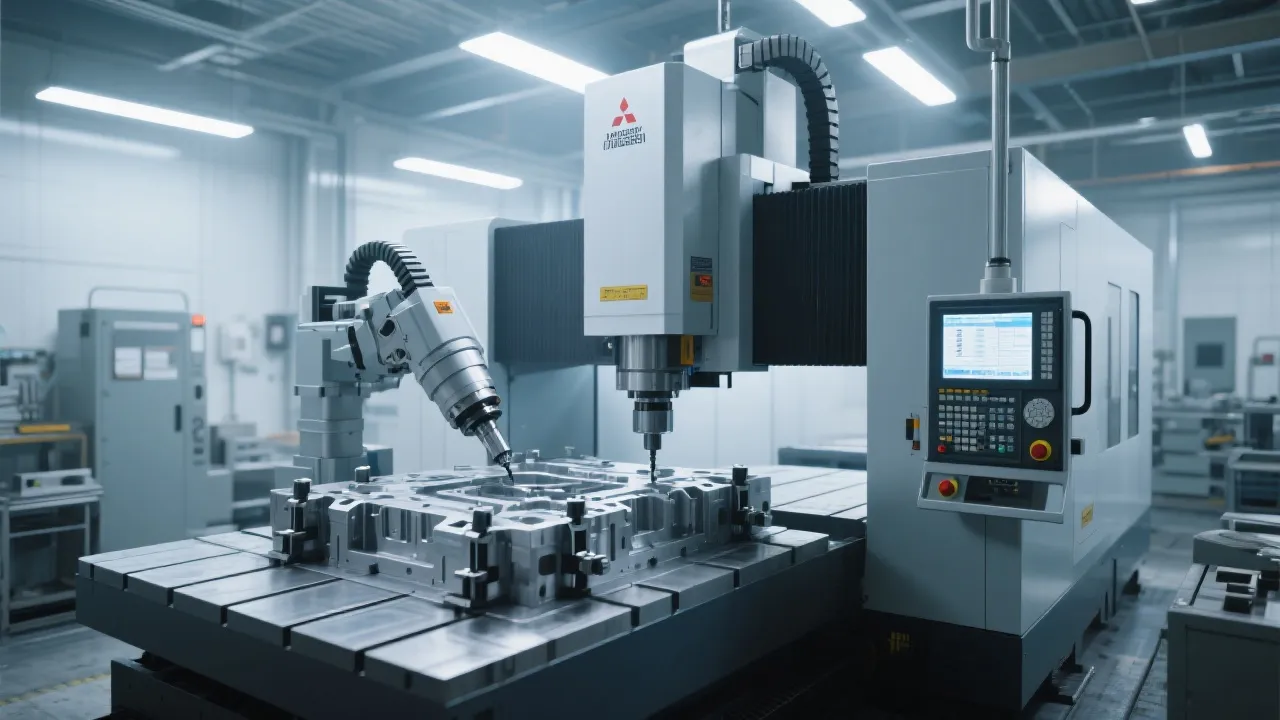

The key lies in how motion is distributed: unlike conventional designs where the entire head moves vertically, the DC1113 uses a fixed beam structure combined with a moving table. This configuration minimizes energy transfer from the spindle to the base—reducing resonance and allowing higher feed rates without sacrificing accuracy.
Real-world results speak louder than specs. At a mid-sized automotive mold shop in Germany, switching to the DC1113 led to:
To preserve the machine’s performance over time, follow these best practices:
Whether you're producing high-tolerance mold inserts or large casting components, choosing DC1113 means selecting a machine engineered for real-world reliability—not just lab-tested claims.
