Graphite machining has become an essential process in various industries, including aerospace, electronics, and automotive. However, graphite dust erosion is a critical pain point that significantly affects the lifespan and machining accuracy of equipment. This article delves into the core performance indicators of high - precision wet graphite machining centers from three major dimensions: sealing integrity, dust filtration efficiency, and operational stability, aiming to help users make rational equipment selection decisions.
Graphite dust is extremely fine and abrasive. When it invades the internal components of machining equipment, it can cause severe wear and tear on moving parts, such as guide rails, ball screws, and bearings. This not only shortens the equipment's service life but also reduces its machining accuracy. For example, in high - precision graphite machining, even a slight deviation in positioning accuracy can lead to product defects, resulting in significant economic losses for manufacturers.
The IP (Ingress Protection) rating is a crucial parameter to measure the sealing integrity of equipment. For instance, an IP54 rating indicates that the equipment is protected against dust ingress to a large extent and is splash - proof. The first digit '5' means that the equipment is protected against the ingress of dust to the extent that it will not affect its normal operation, while the second digit '4' means that it is protected against splashing water from any direction. When measuring the IP protection class, it is necessary to check the tightness of all seals, including door seals, cable entry seals, etc.
The dust filtration system in a wet graphite machining center usually consists of filter elements and a wet flushing system. The filter element is responsible for intercepting most of the dust particles, while the wet flushing system further cleans the remaining dust. For example, a high - quality filter element can filter out more than 99% of dust particles larger than 5 microns. The wet flushing system can effectively remove the dust adhering to the filter element, ensuring the long - term stable operation of the filtration system.
Operational stability is reflected in the ability of the equipment to maintain its positioning accuracy under full - load operation. In high - precision graphite machining, a positioning accuracy of 0.01mm is often required. During full - load operation, factors such as heat generation and mechanical stress can affect the positioning accuracy. Therefore, a high - quality wet graphite machining center should be able to maintain a positioning accuracy of 0.01mm or even higher under full - load conditions.

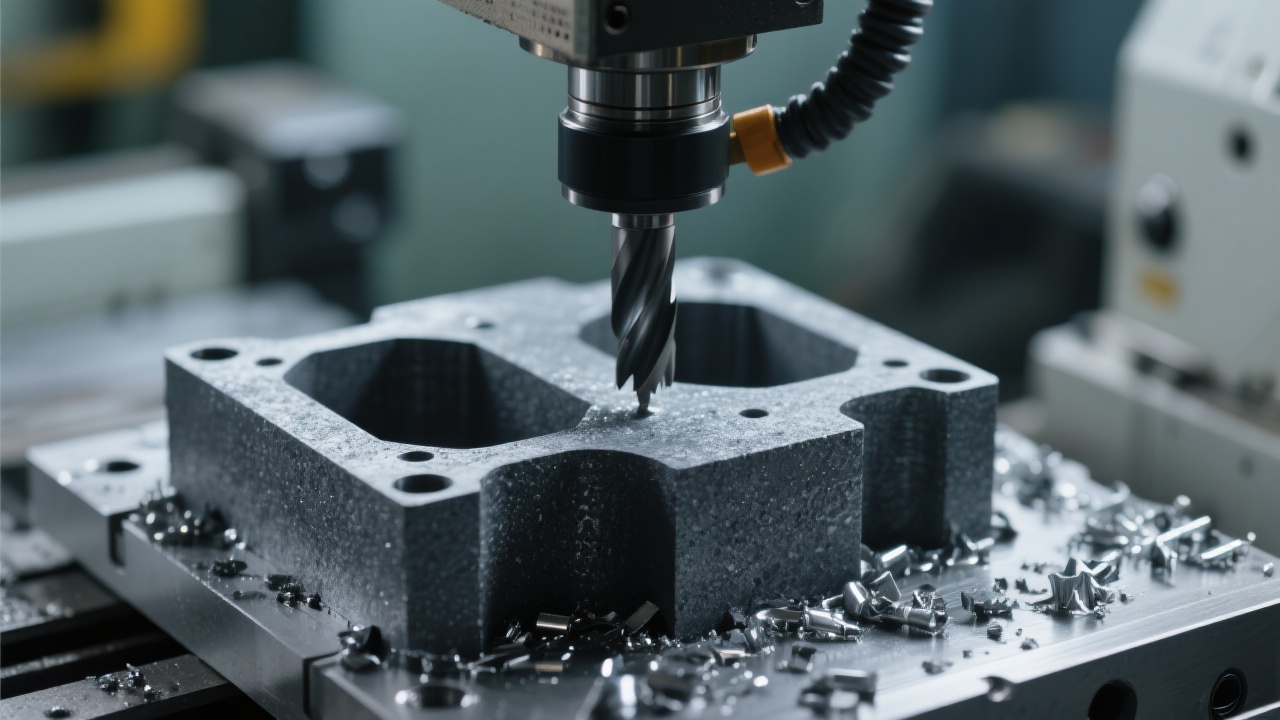

To verify the dust - proof effect of graphite machining equipment, on - site testing or third - party reports can be used. On - site testing can directly observe the actual operation of the equipment, including the sealing performance, dust filtration efficiency, and positioning accuracy. Third - party reports, on the other hand, provide objective and authoritative data based on professional testing methods. For example, a well - known testing institution can provide a detailed report on the dust - proof performance of the equipment, including the IP protection class, dust filtration efficiency, etc.
When purchasing graphite machining equipment, users should pay attention to the following parameters: IP protection class, dust filtration efficiency, and positioning accuracy under full - load operation. Do not be misled by marketing slogans. Instead, rely on scientific data and actual measurement results. By doing so, users can avoid the 'pseudo - dust - proof' trap and make more rational equipment selection decisions, ensuring long - term stable operation of the equipment and controllable machining quality.
To learn more about the dust - proof design details of the DC6060G, please click to consult.
