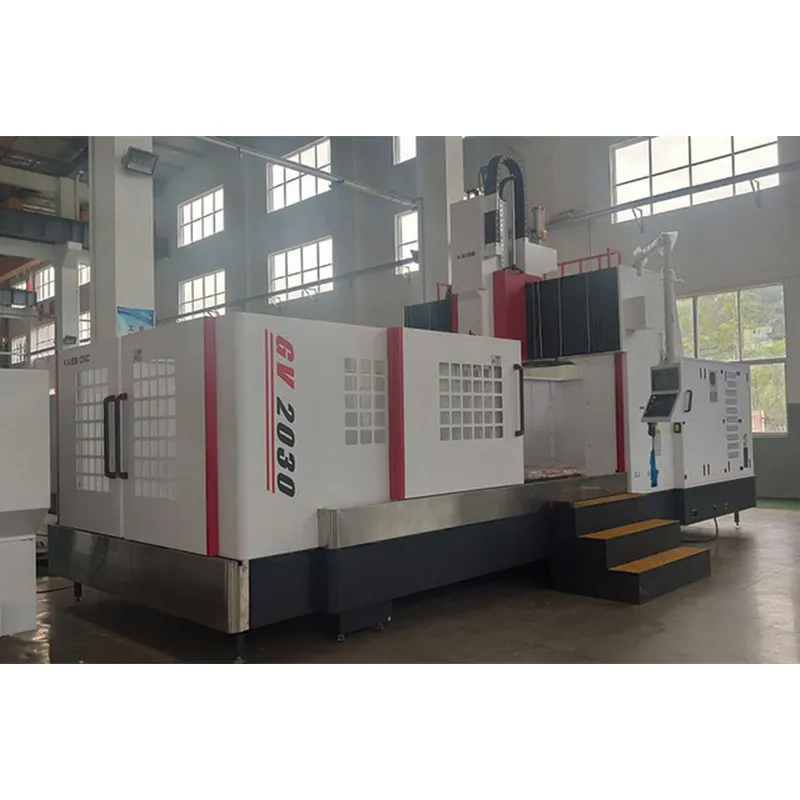

Top-Notch High-Precision Heavy-Duty CNC Machining Center GV2030 Ideal for Aerospace and Automotive Industries

Don't miss out on this exceptional CNC milling machine! Contact us now to submit an inquiry and revolutionize your machining operations with the GV2030.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140221/heavy-duty-machining-center-with-fanuc-controller-gv2030-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140221/heavy-duty-machining-center-with-fanuc-controller-gv2030-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140221/heavy-duty-machining-center-with-fanuc-controller-gv2030-4.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140221/heavy-duty-machining-center-with-fanuc-controller-gv2030-5.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140221/heavy-duty-machining-center-with-fanuc-controller-gv2030-6.jpg

Recommended Products

Product Parameters
accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more
Workbench
Work table size: 2000*3000mm
T-slot dimensions: 8T-18-180 mm
Weight capacity: 8000 kg
Processing range
X/Y/Z axis travel: 2000/3000/1000 mm
Gantry width: 2020 mm
Beam to workbench: 1200 mm
Distance from spindle nose to worktable: 150-1150 mm
Door opening width: 2060 mm
feed
Maximum feed speed G00: 20 m/min
Maximum working speed G01: 8m/min
X/Y/Z axis motor power: αiF30/αiF40/αiF30
Spindle
Spindle motor power: αilP40-18.5KW
Maximum spindle speed: 6000 rpm
Tool holder: BT50
Spindle diameter: -
Common
Power supply and total capacity: 3P/380V/50Hz/30KVA
Machine weight: 32000 kg
aspect: 8300*4900*4850mm
Main Components
Controller: Fanuc/Japan0i-MF
AC servo motor (driver): FANUC/Japan
Spindle inverter: FANUC/Japan
Linear Guides: 55(6,8,12)Hiwin,PMI/Taiwan
Ball Screw: 6310/6310/5010Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2ISHAN/Taiwan
Oil coolant cooler: Parsenhal/China
air conditioner: EA-6A Parsons/China
Pneumatic system: AirTac/Taiwan
Chip conveyor: Internal thread type
Water tank capacity: -
Water pump power: 1000W
Tool library (optional)
ATC Type: Arm Type
Air traffic control capabilities: 24 items
Close
Product Details
Product Introduction
The GV2030 heavy-duty machining center, brought to you by Ningbo Kaibo CNC Machinery Co., Ltd., is a masterpiece designed to meet the exacting precision requirements of the aerospace industry. As a leading force in the industry, Kaibo CNC is dedicated to innovation, ensuring that the GV2030 not only offers high accuracy but also meets extensive cutting needs. Equipped with a well - known Fanuc controller, it guarantees easy operation and reliable performance. Kaibo CNC provides global sales and comprehensive after - sales services, with a brand philosophy of 'developing high - quality machine tools to meet customer needs'. This makes the GV2030 a prime choice in the competitive market, backed by continuous technical support and cutting - edge innovation.
Product Introduction
Advantages and features
1. High precision: Engineered to meet the strict requirements of the aerospace industry. 2. Robust dual - column design: Offers an extended travel range for enhanced functionality. 3. Renowned Fanuc controller: Ensures easy operation and reliable performance. 4. Global sales and after - sales service: Provided by Kaibo CNC, guaranteeing a seamless customer experience. 5. Continuous innovation: Backed by Kaibo CNC, the machine keeps up with the latest technological trends.
Application Scenario
The GV2030 is widely applicable in various industries. It is an excellent choice for the aerospace industry due to its high precision. It is also well - suited for automotive parts manufacturing, mold - making, appliance production, and other industrial sectors. It caters to customers around the world who are seeking reliable and high - precision machining solutions.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
BT50/15kw/6000-8000rpm mechanical spindle More spindles
Tool magazine type
Arm type tool magazine (24 pieces) Arm type tool magazine (32 pieces) Chain tool magazine (40 pieces) Umbrella tool magazine (20 pieces)

Payment method

L/C
L/C
T/T
T/T
D/P
D/P
D/A
D/A

Means of transaction

Communication
Direct Exporting
Indirect Exporting

Refunds

Contact us for details
