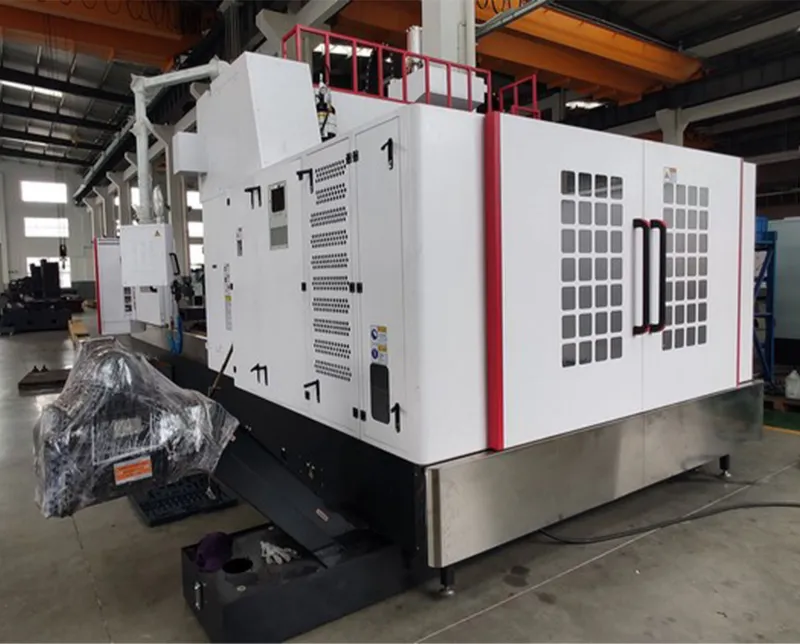

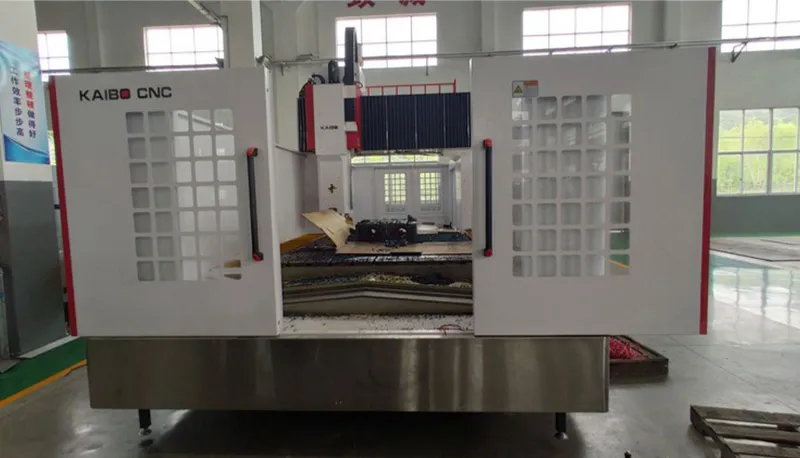

GV2040 Aerospace - Grade Dual - Column High - Precision Large Capacity CNC Milling Machine for Heavy - Duty Processing

Don't miss out on this revolutionary GV2040 CNC milling machine! Contact us now to submit an inquiry and take your production to the next level!
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140841/big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140841/big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807140841/big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-4.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822095753/1724291884434_big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-5.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822095808/1724291896901_big-size-worktable-cnc-milling--machine-for-heavy-processing-gv2040-2.png

Recommended Products

Product Parameters
accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more
Workbench
Work table size: 1800*4000mm
T-slot dimensions: 8T-18-180 mm
Weight capacity: 10000kg
Processing range
X/Y/Z axis travel: 2000/4000/1000 mm
Gantry width: 2010 mm
Beam to workbench: 1200 mm
Distance from spindle nose to worktable: 150-1150 mm
Door opening width: -
feed
Maximum feed speed G00: 20 m/min
Maximum working speed G01: 8m/min
X/Y/Z axis motor power: αiF30/αiF40/αiF30
Spindle
Spindle motor power: αilP40-18.5KW
Maximum spindle speed: 6000 rpm
Tool holder: BT50
Spindle diameter: -
Common
Power supply and total capacity: 3P/380V/50Hz/30KVA
Machine weight: 44000 kg
aspect: 11000*4900*4850mm
Main Components
Controller: Fanuc/Japan0i-MF
AC servo motor (driver): FANUC/Japan
Spindle inverter: FANUC/Japan
Linear Guides: 55(6,8,12)Hiwin,PMI/Taiwan
Ball Screw: 6310/6310/5015Hiwin,PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2ISHAN/Taiwan
Oil coolant cooler: Parsenhal/China
air conditioner: EA-6A Parsons/China
Pneumatic system: AirTac/Taiwan
Chip conveyor: Internal thread type
Water tank capacity: -
Water pump power: 1000W
Tool library (optional)
ATC Type: Arm Type
Air traffic control capabilities: 24 items
Close
Product Details
Product Introduction
Ningbo Kaibo CNC Machinery Co., Ltd. proudly presents the GV2040, a state - of - the - art high - precision large capacity CNC milling machine tailored for the aerospace industry and heavy - duty manufacturing. This machine features a robust dual - column structure with an extended travel range, which provides exceptional stability during heavy processing. The GV2040 can perform complex multi - surface machining with high precision and efficiency, making it an ideal choice for modern production lines. Kaibo CNC is committed to 'developing high - quality machine tools to meet customer needs'. With a strong R & D and after - sales service team, we offer comprehensive support to ensure the long - term stable operation of the equipment. Global customers in aerospace and heavy machining sectors can rely on the GV2040 for a competitive edge in the market.
Product Introduction
Advantages and features
1. Robust dual - column structure: Ensures high stability and powerful machining capabilities for heavy - duty tasks. 2. Extended travel range: Allows for a wider scope of machining operations. 3. High precision and efficiency: Capable of complex multi - surface machining with superior accuracy. 4. Comprehensive support: Backed by a strong R & D and after - sales service team from Kaibo CNC.
Application Scenario
This GV2040 CNC milling machine is suitable for the aerospace industry, automotive parts manufacturing, and mold processing in heavy - duty sectors. It caters to global customers in industries that require high - precision and large - capacity machining, providing them with reliable solutions for their production needs.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
BT50/15kw/6000-8000rpm mechanical spindle More spindles
Tool magazine type
Arm type tool magazine (24 pieces) Arm type tool magazine (32 pieces) Chain tool magazine (40 pieces) Umbrella tool magazine (20 pieces)
