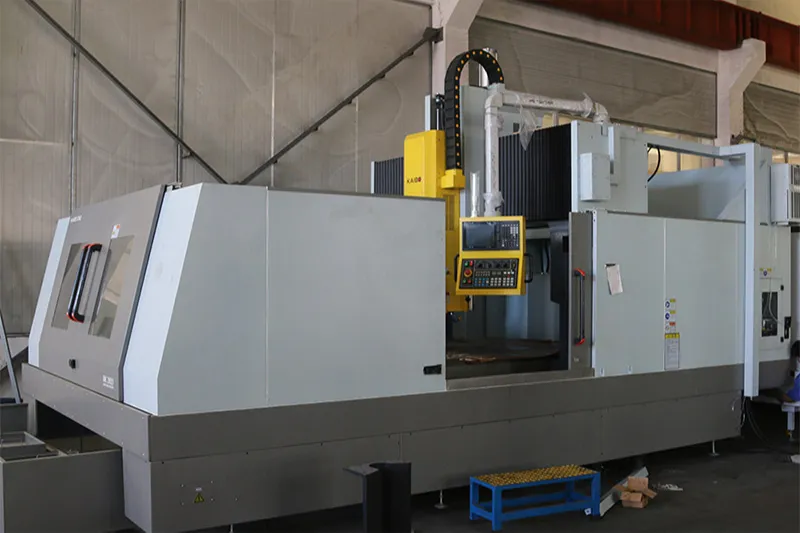

High-Precision & High-Stability Gantry CNC Milling Machine DC2025 for Large-Scale Plastic Molds

Don't miss out on this efficient and reliable machining solution! Contact us now to submit an inquiry and take your business to the next level with the DC2025 gantry CNC milling machine.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807135736/gantry-type-cnc-milling-machine-for-metal-processing-dc2025-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807135736/gantry-type-cnc-milling-machine-for-metal-processing-dc2025-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820154020/lQLPJxXDaY5R9MPNBU7NA4iwZej6DfoS8qkGrUkZysT8AQ_904_1358.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822095342/1724291632011_gantry-type-cnc-milling-machine-for-metal-processing-dc2025-2.png

Recommended Products

Product Parameters
Accuracy
positioning accuracy: 0.01/300 mm
Repeatability: 0.015 mm
See more
Workbench
working desk size: 2000*2500mm
weight capacity: 3000 kg
Processing range
X/Y/Z axis travel: 2000/2500/720 mm
Gantry width: 2010 mm
Beam to workbench: 900 mm
Distance from spindle nose to worktable: 135-855 mm
Feed
Maximum feed speed G00: 12m/min
Maximum working speed G01: 8m/min
X/Y/Z axis motor power: 4400W/4400W/4400W
Spindle
Spindle motor power: 11 kilowatts
Maximum spindle speed: 8000 rpm
Tool holder: BT40
Common
Power supply and total capacity: 3P/380V/50Hz/30KVA
Machine weight: 22000 kg
aspect: 6020*3400*3230mm
Main components
Controller: Syntec21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 55Hiwin, PMI/Taiwan
Ball Screw: 5510Hiwin,PMI/Taiwan
Close
Product Details
Product Introduction
Since its establishment in 1994, Ningbo Kaibo CNC Machinery Co., Ltd. has been committed to delivering high - quality CNC machine tools. The DC2025 gantry CNC milling machine is specifically designed for large - scale plastic mold processing. With its dual - column vertical design, it significantly enhances processing efficiency and ensures stability during the manufacturing process. As a key contributor to national standards for CNC engraving and milling machines, Kaibo CNC has gained wide trust from international clients in regions such as the Arab region, Russia, Spain, and Portugal. This machine effectively overcomes challenges related to material characteristics in large mold production and reduces operational costs. Kaibo CNC also provides outstanding after - sales service, so you can use our products with peace of mind.
Product Introduction
Advantages and features
1. Superior precision: Ensures high - quality machining for large - scale plastic molds. 2. Exceptional rigidity: Withstands the rigors of large - scale machining. 3. Dual - column vertical design: Enhances processing efficiency and stability. 4. Cost - effective: Reduces operational costs during production. 5. Reliable after - sales service: Provided by a trusted industry leader.
Application Scenario
This DC2025 gantry CNC milling machine is ideal for large - scale plastic mold processing. It is suitable for manufacturers in the plastic mold industry who require high - precision and efficient machining. It has been well - received in international markets, including those in the Arab region, Russia, Spain, and Portugal, and can meet the needs of businesses of different scales in these areas.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
BT40/15kw/12000rpm mechanical spindle HSK A63/11kw/24000rpm electric spindle HSK A63/11kw/24000rpm electric spindle More spindles
Tool magazine type
Arm type tool magazine (24 pieces) Arm type tool magazine (32 pieces)

Payment method

L/C
L/C
T/T
T/T
D/P
D/P
D/A
D/A

Means of transaction

Communication
Direct Exporting
Indirect Exporting

Refunds

Contact us for details
